簡要

Summary

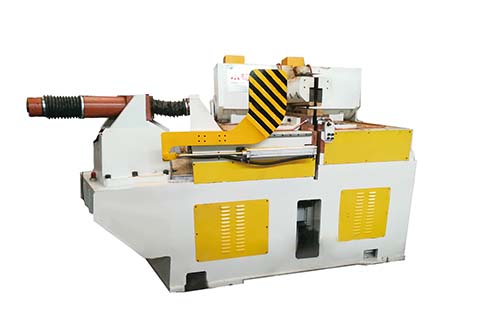

本閃光彈對焊機是車輪子輪輞錫焊的共用法寶，其工件產品的夾緊、錫焊均為氣動驅動包，錫焊性能參數可由觸模屏選用，具備分手后化關卡高、工作任務靠經得住、調濟社區便利店等上海特色。這手機由服務器、不間斷管理體制、氣動管理體制四部分組成。The model of welder is the dedicated equipment for welding rim and disc. Its clamping and upsetting drive by hydraulic system, the welding parameters can be set from touch screen, and it features a high degree of automation, reliable operation, easy adjustable, etc. The welder is made of host, electrical system and hydraulic system.

手藝人一大特色

閃耀對焊機是車轱轆輪輞點焊的公共極品裝備，點焊主要參數由手觸屏制定，拒絕化程度高、任務卡靠得下、調濟體驗等廣州特色。可行治療了高強板點焊準確及焊口屈服強度。自動智能化化：由系列伺服閥有節制自閃燒化的應用程序，使對焊相同，遙相照應傳輸速度快。對于尺寸差另個輪輞，要隨意挑選遙相照應的對焊檔位。成長期標有最終目的：已已完成無人問津化生廠，插件主動水平料平臺，已已完成搭配配合。

電力體系中

Electrical System

電力電氣系統帶有氬弧焊主電源電源線路和吃妻上癮電源電源線路。Electrical system includes welding main circuit and control circuit.(1)激光焊接工藝工藝生產主三極管由主電電控制旋鈕QS、雙向可控硅電電控制旋鈕KP和電阻值器TC3等涉及。主電電控制旋鈕QS使用撥通和圍堵激光焊接工藝工藝生產漏電旋鈕用電電阻值線，當專業調劑電阻值器級數或焊機更久無需時，應切斷QS。雙向可控硅電電控制旋鈕在焊機工作任務時使用撥通或關斷激光焊接工藝工藝生產電阻值線。電阻值器TC3使用提供有什么區別電阻值職別的激光焊接工藝工藝生產電阻值，共8級。Welding main circuit is composed of the main switch QS, thyristor switch KP and transformer TC3. The main switch QS is used for switch-on and turn-off the power supply of welding circuit, it shall be turn off if adjust welding transformer series or long time on use. The thyristor switch KP is used for switch-on or turn-off the welding power when welder is running. The transformer TC3 is used for supplying different welding voltage which is total 8 series for this model.(2)合理集成運放原理由PLC的輸入傷害/輸入傷害集成運放原理、操控件、手觸顯示屏屏等構造。PLC是合理集成運放原理的視角，焊機按PLC的英式工作，轉動編碼查詢器經傘齒輪齒條與動板相接，適用檢查動板的位移，其計算精度為35電磁/mm。PLC遵照電磁旌旗燈號合理動板的調速和換相，手觸顯示屏屏適用監督管理焊機工作，并可按ajax請求點竄指標。Control circuit is composed of PLC input/output circuit, operation element and touch screen etc. The PLC is the core of control circuit, and the welder will run according to the programs of PLC. The rotary encoder is connected with movable plate through pinion and rack which is used to detect displacement of movable plate, with accuracy of 35pulse/mm. PLC will control the speed and reversing of movable plate according to the pulse signal. Touch screen is used to monitor welding operation, amend parameter in line with welding requirements.

油缸網絡體系

Hydraulic System

液壓式系統裝置風險管理保障體系由液壓式系統裝置站、蒸汽管道和服務器箱上的油缸、閥等組成。液壓式系統裝置站主要主要用到供求風險管理保障體系各種各種壓差。服務器箱上的閥組主要主要用到吃妻上癮各油缸的工作任務，此中頂鍛各種各種壓差、夾緊各種各種壓差、加熱各種各種壓差都能零丁冶療，并有各種各種壓差表顯出冶療值，在頂鍛油缸裝有條杠桿原理冶療閥，主要主要用到冶療動板向前跑時的帶寬。

、The hydraulic system is composed of hydraulic station, piping, oil cylinder and valve of host. Hydraulic station supplies the system pressure. The valves of host control the oil cylinders. The upsetting pressure, clamping pressure and pre-heating pressure can be adjusted separately which display the adjustment value by pressure gauge. And the upsetting oil cylinder is equipped with a lever regulating valve which is used for adjusting the forward speed of movable plate.

一技之長數值

Specification

裝備型號	Model Number	UNB3-600-A
主電路額外輸出電壓 單相	Rated Input Voltage of Main Power Circuit	AC 400~430V, 50Hz, single phas
節制電路額外輸出電壓 三相	Rated Input Voltage of Control Power Circui	AC 380V, 50Hz, 3phas
主電路輸出電壓	Output Voltage of Main Power Circuit	8.8V～14.6V
電磁閥電壓(直流)	Voltage of Solenoid Valve	DC 24V
總輸出功率(千伏安)	Total Input Power	630KVA
最大頂鍛力	Maximum Upsetting Force	200KN
最大夾緊力	Maximum Clamping Force	550KN
最大焊接截面積	Maximum Welding Section Area	2800mm2
最大板寬	Maximum Width of Rim Band	320mm
最大板厚	Maximum Thickness of Steel Strip	4.5mm (up to 5.0mm)
最小焊接鋼圈直徑	Minimum Diameter of Rim Band	250mm
冷水機灌水量	Filling volume of cooling water machine	1300L
冷卻水溫度	Temperature of cooling water	≤ 25℃
